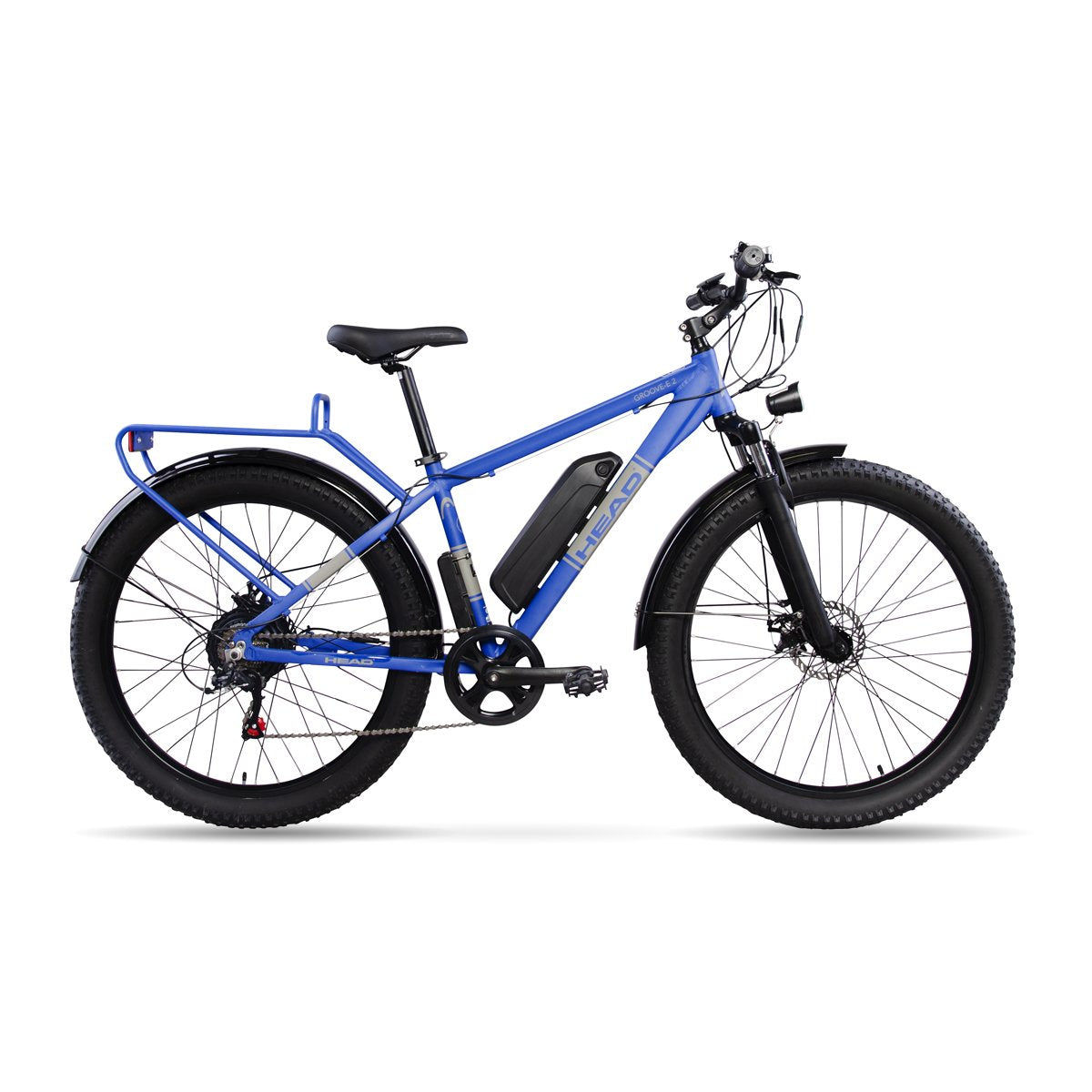

Groove-E 2 Electric Bike

Name: Groove-E 2 Electric Bike
Brand: Head

$1,899.99

Color

Size

Quantity

Now you too can be groovy, with the Groove-E2. The ultimate in do-it-all eBikes has all the features you will need from city commuting to off-road riding. Fenders keep you dry on the ride to work and an integrated rear rack will carry your groceries home. With a top speed of 20mph and range of 30 miles, 48-volt battery and 750 watt motor, a front suspension and 3” wide knobby tires, you can turn every ride can turn into an adventure. An LCD display, integrated lights, Shimano shifting system, and power shut-off brakes provide technology, safety, and durability all in one bike.

Frame/Fork: Aluminum frame with integrated rack, suspension fork with 50mm travel

Tires/Wheels: 27.5x3" tires, double wall aluminum wheels

Drivetrain/Brakes: Shimano 7 speed Tourney, power-off disc brakes

Motor/Battery: 750W Rear hub motor, Lithium-ion 48V battery

Pedalec with throttle, 30 mile range, 20mph top speed
A range of 30 miles, 48-volt battery and 750 watt motor can take you just about anywhere you want to go

With 3" knobby tires and a suspension fork you can always take the road less traveled

Shimano shifting system and power-off disc brakes provide durability and safety

Download Spec Sheet: HEAD GROOVE-E 2 eBike

Sizes	Small / Large	Chain	KMC 7s
Color	Blue or Cream	Pedals	9/16" Platform
Frame	27.5" Aluminum, disc w/ integrated rack	Handle bars	Aluminum, 25.4x660mm, 15°
Fork	1 1/8" Threadless, 50mm travel	Stem	Threadless, adjustable
Wheel set	27.5" Aluminum, double wall, 36H, 6-bolt	Head set	1 1/8" Threadless
Tires	Kenda 27.5x3"	Grips/ Tape	Rubber
Shifters/ Brake Levers	Shimano Tourney TX50 7 speed, power shut-off brake levers	Brake set	Power shutoff mechanical disc brake w/ 160mm rotor
Front Derailleur	N/A	Saddle	Adult Hybrid
Rear Derailleur	Shimano Tourney TZ500 7 speed	Seatpost/ Clamps	Aluminum, 30.4mm w/QR
Crank set	44T, 170mm w/chainguard	Extras	Bell, integrated front light, fenders, reflectors
Bottom Bracket	Cartridge, square taper	Weight/ Weight Limit	62 lbs / 300 lbs
Cassette	Shimano TZ500 7speed, 14-28t	Warranty	Frame: Lifetime, Parts & Components: 1 year

Specs are subject to change without notice

E-BIKE COMPONENT SPECS

Motor Brand	MXUS	Battery Chemistry	Lithium-ion
Motor Type	Rear hub	Charge time	6 Hours
Motor Nominal Output	750W	Estimated Min Range	25 Miles
Motor Peak Output	900 W	Estimated Max Range	30 Miles
Motor Torque	45 N.m	Display Type	LCD

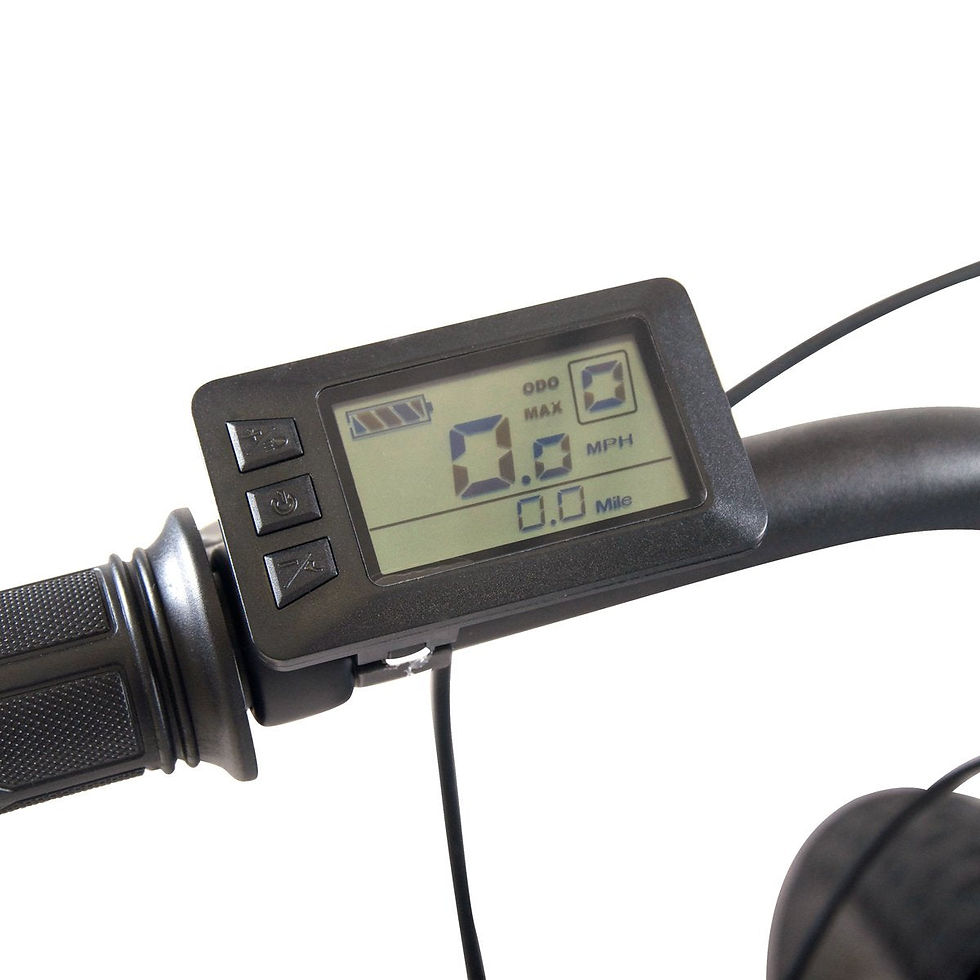

Battery Brand	Greenway	Readouts	Battery level, motor output, assistance level, speed, trip and total distance, trip time
Battery Voltage	48V	Display Accessories	LCD
Batter Amps	10.4Ah	Drive Mode	5 levels, Throttle and Pedalec
Battery Watt Hours	499Wh	Top Speed	20 MPH

BIKE GEOMETRY

Bike Sizes	S/M	L/XL
ST - Seat Tube Length	432	533
TT - Horizontal TT length	539	589
ST° - Seat Angle	74°	74°
HT° - Head Angle	71°	71°
HT - Head Tube Length	125	125
BB - BB Drop	45	45
CS - Chainstay Length	465	465
FO - Fork Offset	38	38
TR - Trail	--	--
WB - Wheelbase Length	1126	1126
SO - Standover (center tt - ground)	811	858
RH - Reach	408	408
SK - Stack	613	613
FL - Fork Length	490	490

All measurements are provided in millimeters (mm) unless indicated otherwise
